Impact and dynamics for a real home cinema experience
High sensitivity, very low distortion
Precise pattern control

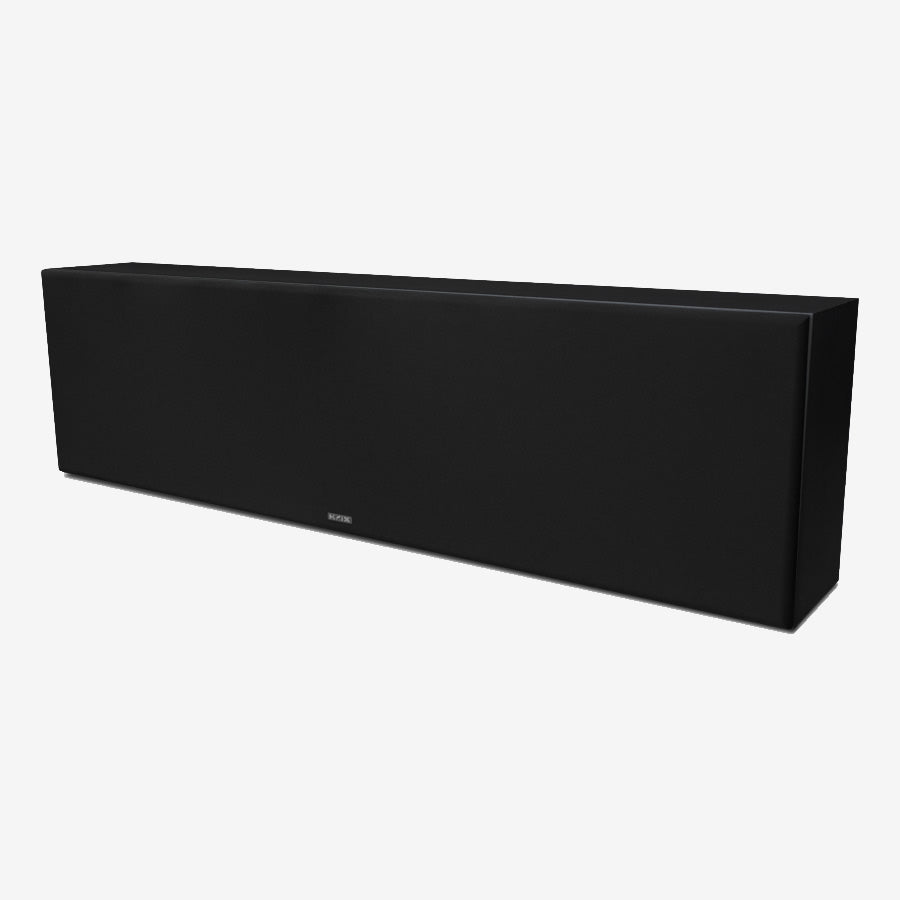

Mounted below your screen, the Megaphonix Centre delivers high quality dialogue and effects for your ultimate movie experience.
SPECIFICATIONS
Frequency range 40Hz-20kHz in room response
Power handling 50-250 Watts RMS recommended amplifier power
Sensitivity 95dB for 2.83 volts at 1 metre
Impedance 8 Ohms
Configuration 2-way
Enclosure type Bass reflex, front vented
Dimensions 285mm high x 1035mm wide x 164mm deep
Low frequency driver Single 255mm (10”) paper cone driver. 50mm (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion
High frequency driver 26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide
Crossover point 1.8kHz
Input terminals Gold plated binding posts
Weight 15kg each
