Designed for use as both fronts and surrounds, the IW-30 will disappear into the room, leaving you to enjoy the soundtrack.

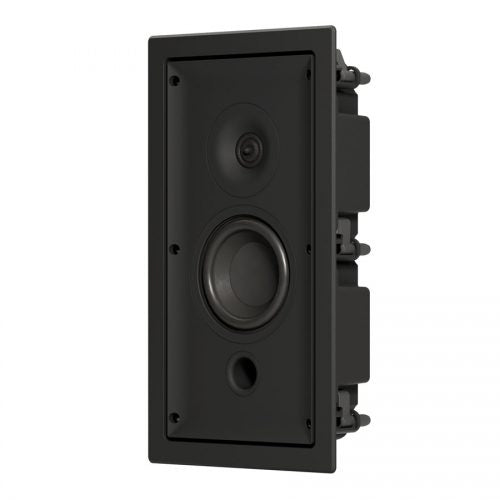

The IW-30 is a compact in-wall speaker, ideal for creating a two channel music or multichannel home theatre experience. With performance surpassing its size, the IW-30 is well suited to small to medium home theatre rooms as main or surround speakers, or as a left and right pair for stereo music.
As a rectangular in wall version of the in ceiling IC-30 (Hemispherix AS) and IC-32 (Hemispherix A20) speakers, the IW-30 offers precise tonal matching, but will also provide excellent synergy with any of the Krix speaker range. Designed to fit within a 70mm wall cavity, its fully enclosed back box ensures acoustic integrity and prevents rear sound radiation from being transferred to adjoining rooms.
Bass and midrange clarity are delivered through the 100mm bass driver, while the 20mm ring radiator tweeter sits within an integrated waveguide for improved dispersion. The single piece trimless grille is held in place by magnets at the front of the speaker, and can be painted to match the decor of any room.
For the ultimate sound experience at home, play it through Krix.
Frequency range
65Hz-40kHz in room response
Power handling
20 – 100 Watts RMS recommended amplifier power
Sensitivity
86dB for 2.83 volts at 1 metre
Impedance
Nominally 6 Ohms (minimum 4.2 Ohms)
Configuration
2-way
Cut-out dimensions
325mm x 170mm recommended
Dimensions
353mm high x 198mm wide x 79mm mounting depth
Low frequency driver
Nominal 100mm (4”) doped paper cone. 25mm (1”) voice coil wound on high temperature Kapton former
High frequency driver
20mm (3/4″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Neodymium magnet
Input terminals
Gold plated spring terminals
Enclosure type
Bass reflex, front vented
Weight
2.5kg each
