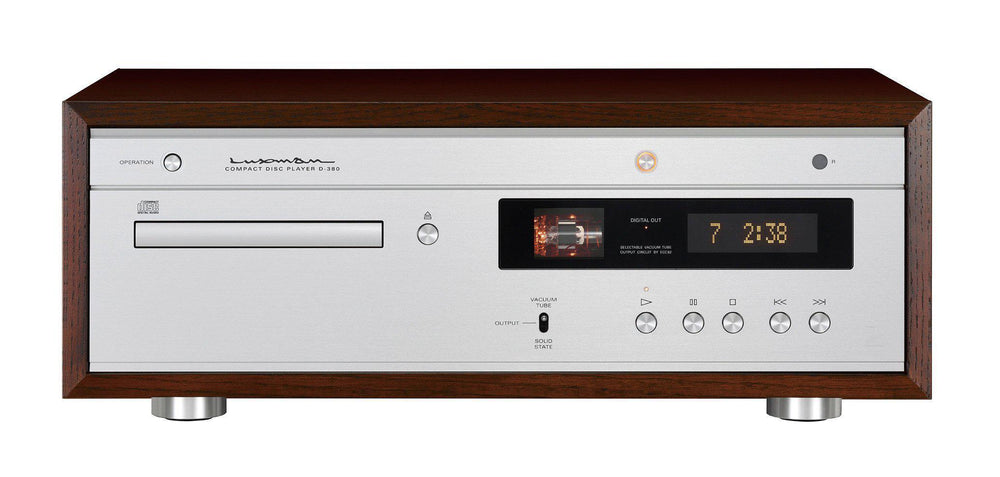

Luxman D-380 CD Player

Description

The D-380 is a digital CD player that can also play music through the vacuum tube output and which bears the number ‘38’ – a number synonymous with the golden era of LUXMAN vacuum tube amplifiers. This player features a vacuum tube output consisting of a buffer circuit using ECC82 vacuum tube and a dedicated transformer as well as an advanced digital circuit with a 32-bit compatible DAC and a jitter reduction IC. The D-380 is housed in a classical wooden box and enhances the enjoyment of listening to CD’s for the many fans of music played through this mature music medium.

Specifications:

Applicable disc 2 channel CD

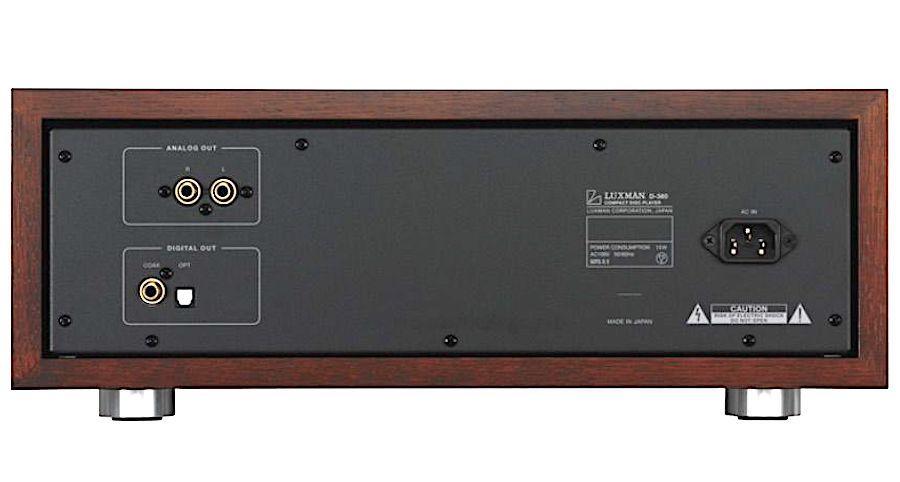

Analog output Unbalanced x 1

Digital output Coaxial x 1, Optical x 1

Output voltage SOLID STATE: 2.1V, VACUUM TUBE: 2.4V

Output impedance 300Ω

Frequency response SOLID STATE: 20Hz to 20kHz (+0, -0.2dB)

VACUUM TUBE: 20Hz to 20kHz (+0.1, -0.3dB)

Total harmonic distortion SOLID STATE: 0.005%, VACUUM TUBE: 0.8%

S/N ratio (IHF-A) SOLID STATE: 115dB, VACUUM TUBE: 105dB

Vacuum tubes ECC82×1

Power supply 230V~(50Hz) / 115V~(60Hz)

Power consumption 16W (at standby)

External dimensions 440(W) x 167(H) x 286(D) mm

front side knob of 4mm and rear side terminal

of 8mm included in depth

Net weight 10.8kg(main unit)
