Description

CINEMA 30

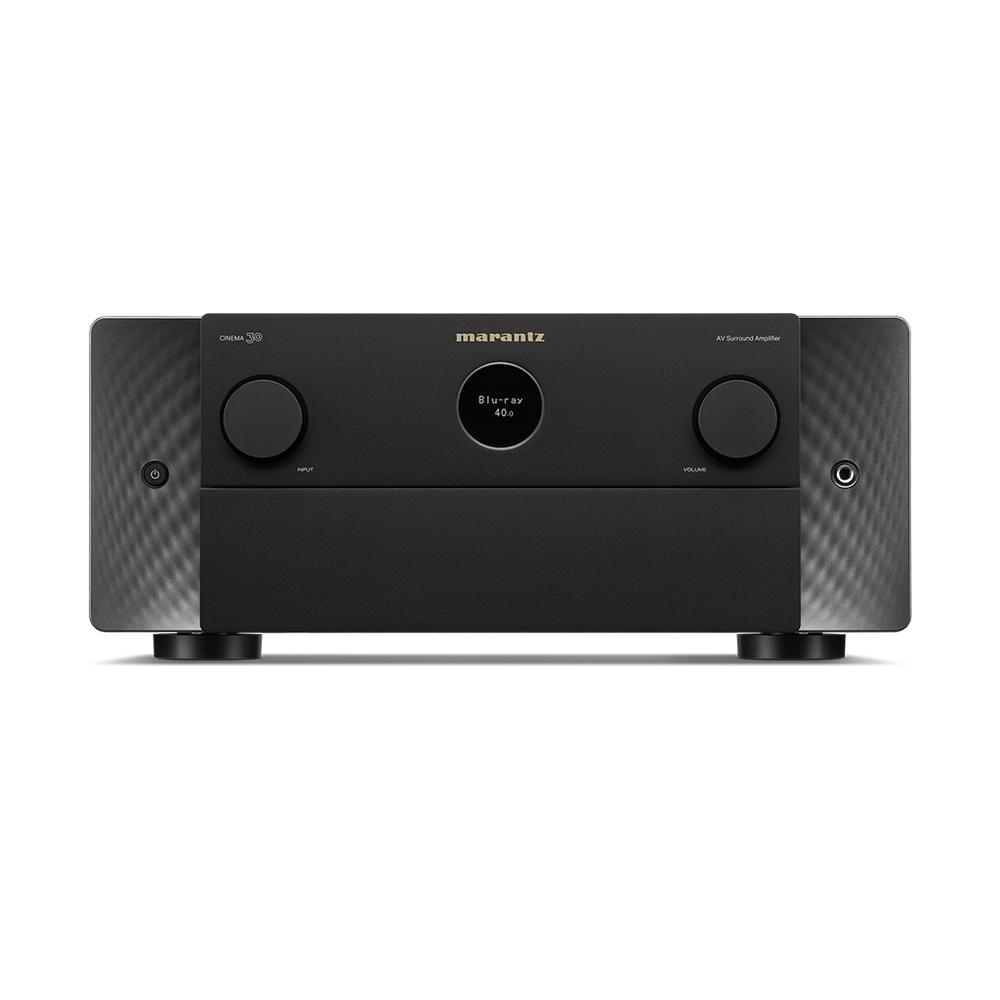

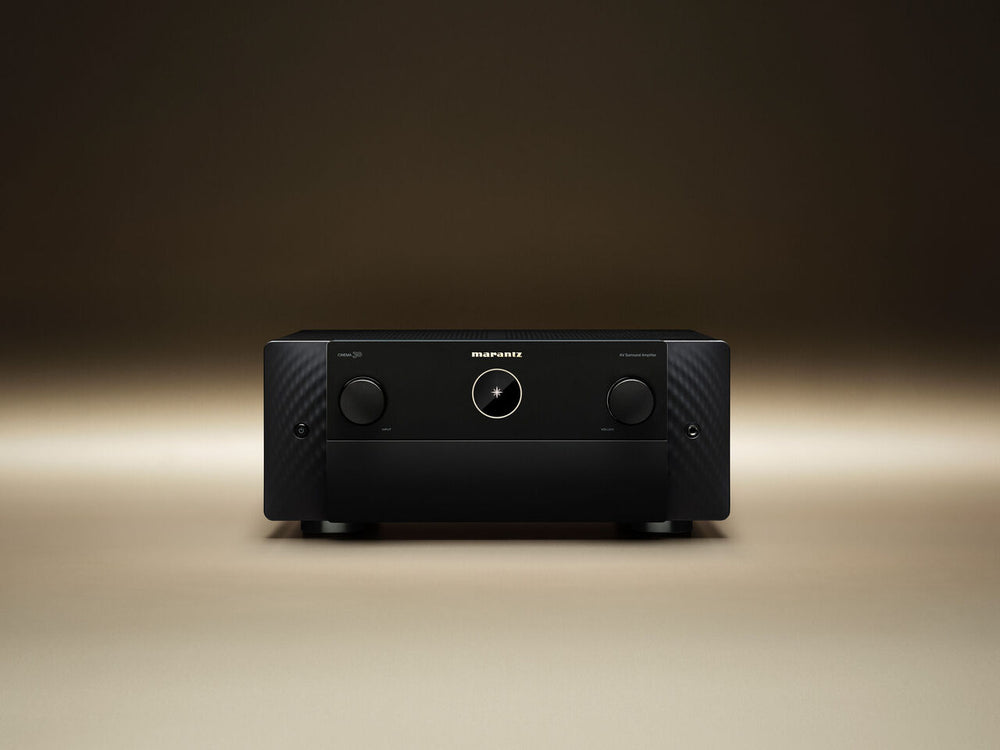

Marantz Cinema 30 8K Home Theatre Amplifier

• High Performance 13.4 Channel 8K Home Theatre Amplifier
• eARC HDMI, Marantz Hyper Dynamic Amplifier Modules
• Bluetooth Receiver & Transmitter, Voice Control, HEOS Music Streaming
• 11 Channels of Amplification, 140 Watts, 4 Subwoofer Outputs

The Cinema 30 represents the pinnacle of Marantz’s celebrated approach to home theatre amplifier design. In every regard, this no-holds-barred flagship model distils all of the timeless yet progressive design, unrivalled performance and technological excellence of Marantz’s product philosophy into one outstanding component.

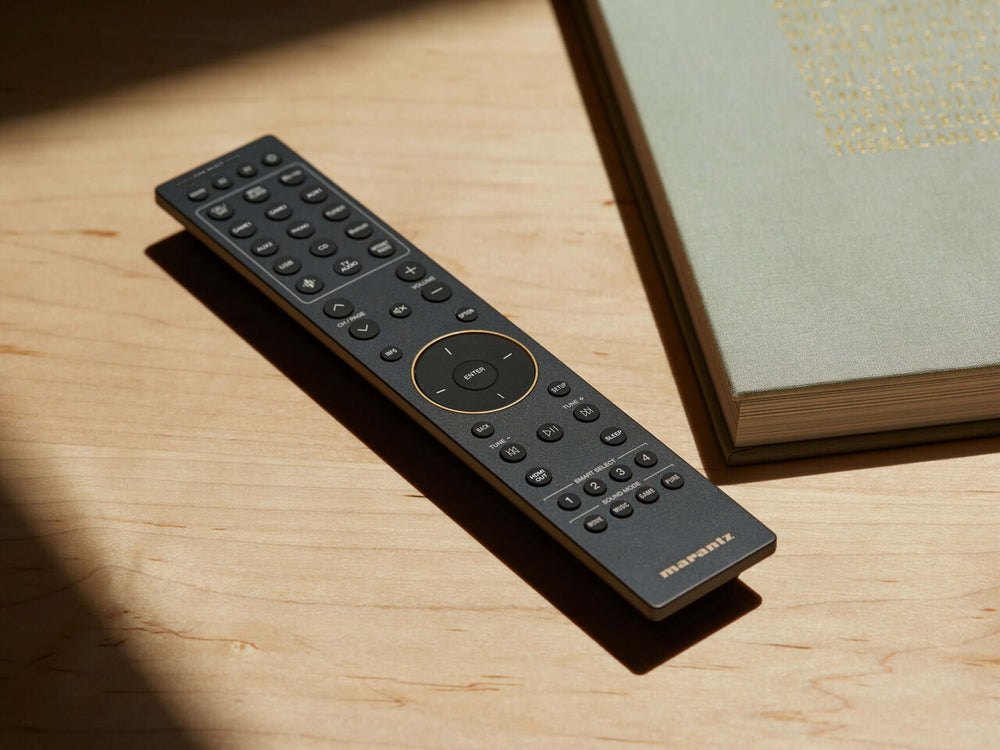

The Cinema 30 incorporates the latest generation of Marantz’s iconic porthole display combined with new industrial design language and is built to the highest standards, with a multi-layer chassis incorporating extensive use of copper. Its elegant fascia features selectable side illumination and a fold down front panel conceals all less frequently functions when not in use, creating a clean aesthetic not typically associated with home theatre amplifiers. Even the aluminium remote control has been carefully considered and features backlighting to ensure an effortless user experience in darkened rooms.
Clean, Low-Distortion Power: At its core, Cinema 30 is built around a symmetrical, monolithic amplifier – the most advanced amplifir layout available in the AVR category.
The amplifier channel is mounted on a separate PCB exactly opposite the power supplies, delivering remarkably clean and instantaneous low-distortion power. Eleven channels of onboard amplification ensure sufficient output to support a wide range of potential speaker configurations for all forms of immersive audio. The 13.4-channel onboard processing with selectable pre-amp mode allows for the addition of an external power amplifier to suit the very largest of dedicated home theatre environments.
Of course, all aspects of the power amplification, power supply and signal path have been carefully honed by the Marantz Sound Master, based in Shirakawa, Japan, to ensure the best possible sound quality with all source components and in all audio modes. All digital and analogue signals pass through the Marantz HDAM SA-2 pre-amplifier stage to ensure the characteristic warmth and musicality expected from any Marantz audio product.
Digital Excellence Meets State-Of-The-Art Processing: As befits its status as the flagship AVR in the Marantz portfolio, the Cinema 30 deploys the latest and most powerful Analog Devices SHARC dual DSP chipset coupled to state-of-the-art 32-bit ESS Sabre DACs with dedicated jitter reduction. The result is a powerful digital platform able to precisely decode and accurately process all forms of incoming audio, from high resolution stereo to the latest forms of immersive audio, including Dolby Atmos™, IMAX Enhanced™, DTS:X Pro™ and Auro 3D™.
To ensure the best possible results with a broad range of speakers in any listening environment, Cinema 30 teams that capability with Audyssey MultEQ XT32 advanced room optimization, based on automatic calibration of speaker sizes, speaker distances, level adjustment and more, all enabled by an included microphone.
Dirac Live calibration is optionally available and includes Dirac Live Bass Control, allowing for fully optimized low frequency integration for up to four independent subwoofers, giving perfectly coherent bass response in even the most challenging room environment.
A Complete Digital and Analogue Solution in One: Cinema 30 scales to meet an extensive range of system configurations now and in the future. Each of its seven HDMI inputs can support 8K video and its high resolution user interface makes setup and customization seamless. Multiple analogue and digital inputs, coupled to an extensive range of custom installation optimized features means Cinema 30 can be adapted to suit every possible customer use case from intimate media rooms through to large dedicated home theatres.
Naturally, Cinema 30 also supports the latest HEOS whole-home multi-room platform giving effortless access to a broad range of streaming service content, all seamlessly integrated into one unified user experience. Spotify Connect, AirPlay 2 and Bluetooth complement HEOS to ensure access to the broadest possible range of mobile devices and use cases. Finally, Cinema 30 can be integrated with your choice of Amazon Alexa, Google Assistant or Apple Siri voice controllers for the ultimate in simple yet smart accessibility.
Dave Sheen, President of the Luxury Performance Audio Group, Masimo Consumer commenting on the launch, said: “Cinema 30 represents a statement of excellence for Marantz in the AVR category and one of the most sophisticated designs the team has created in its 70-year history. I cannot wait to hear how it is received by our loyal customers and specialist reviewers.”



Model NumberCINEMA30 DTS HD Master / DTS:X / DTS:X Pro / DTS Neo:6 / DTS Neural:X / DTS Virtual:XYes / Yes / Yes / No / Yes / Yes IMAX EnhancedYes Dolby TrueHD / Dolby Atmos / Dolby Atmos Height VirtualizationYes / Yes / Yes Dolby Atmos Music / Dolby ProLogic II / Dolby SurroundYes / No / Yes Auro 3DYes 360 Reality Audio / MPEG HYes / Yes Multichannel StereoYes Max. Number of Processing (Preamp) Channels13.4

Sound Enhancements

Discrete Power AmplifierYes Copper Plated ChassisYes Power TransformerToroidal Current Feedback TopologyYes Hyper Dynamic Amplifier Modules (HDAM)Yes Pure DirectYes Gold Plated RCA TerminalsYes Clock Jitter ReducerYes AudysseyMultEQ XT32 Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFCYes / Yes / Yes Dirac Live upgradabilityYes Compressed Audio Enhancer: MDAX2Yes

Network

HEOS Multi-Room and StreamingYes Bluetooth Re-Transmit for Bluetooth headphonesYes (with volume control) Works with AlexaYes Network Audio SharingYes Lossy FormatsMP3 / WMA / AAC Lossless FormatsFLAC / ALAC / WAV Lossless formatsFLAC HD 192/24 / WAV 192/24 / ALAC 192/24 DSD Audio StreamingYes, 2.8/5.6 MHz Gapless PlaybackYes (FLAC, WAV, ALAC, DSD) AirPlay Audio StreamingYes (AirPlay 2) Internet RadioYes (TuneIn) SpotifyYes (Spotify Connect) Roon testedYes Compatible with Remote App for Smart PhonesMarantz AVR Remote Compatible with Remote App for TabletsAndroid / iOS / Amazon Kindle Wi-Fi / Bluetooth / Ethernet PortsYes / Yes / Yes

HDMI

HDCP 2.3 SupportYes HDMI Outputs: Main / ZoneYes Video Conversion Analog → HDMIYes Analogue to HDMI ScalingYes HDMI to HDMI ScalingYes GUI Overlay on HDMIYes HDMI 2.18K/60Hz AB / 4K/120Hz AB: Yes 8K/60Hz AB / 4K/120Hz AB Pass-through In/OutYes HDMI 2.0: 3D / 4K / CEC / ARCYes HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDRYes ALLM (Auto Low Latency Mode) Pass-through for GamingYes Variable Refresh Rate / Quick Flame Transport / Quick Media SwitchingYes / Yes / No 3D Signal Pass-throughYes 8K Signal Pass-through / Scaling / GUI OverlayYes / Yes / Yes 4K Signal Pass-through / Scaling / GUI OverlayYes / Yes / Yes HDMI Pass-through in Standby ModeYes CECYes DSD Audio CapabilityYes Audio Return ChannelARC, eARC Auto LipSyncYes

Multiroom / CI

HEOS Multi-Room IntegratedYes Multi-Room zones3 Zone Audio Source : HDMI / Opt, Coax / Network, USB / AnalogueYes (2ch) / Yes (2ch) / Yes / Yes Zone Audio Output: Speaker / PreoutYes / Yes Zone HDMI Output from HDMI SourceYes IP Control / RS232 Control / Web Control / App ControlYes / Yes / Yes / Yes IR Flasher InYes Marantz Remote BusYes DC Trigger Output3 HDMI DiagnosticsYes

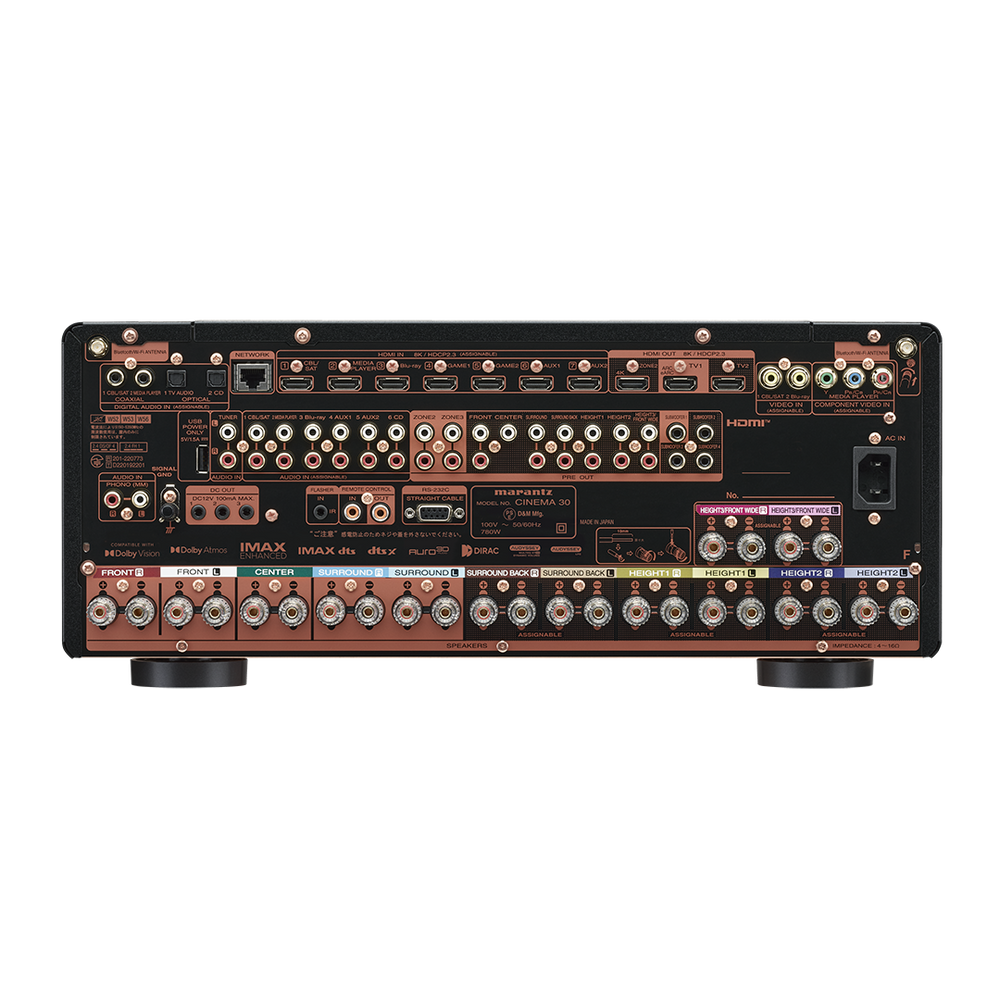

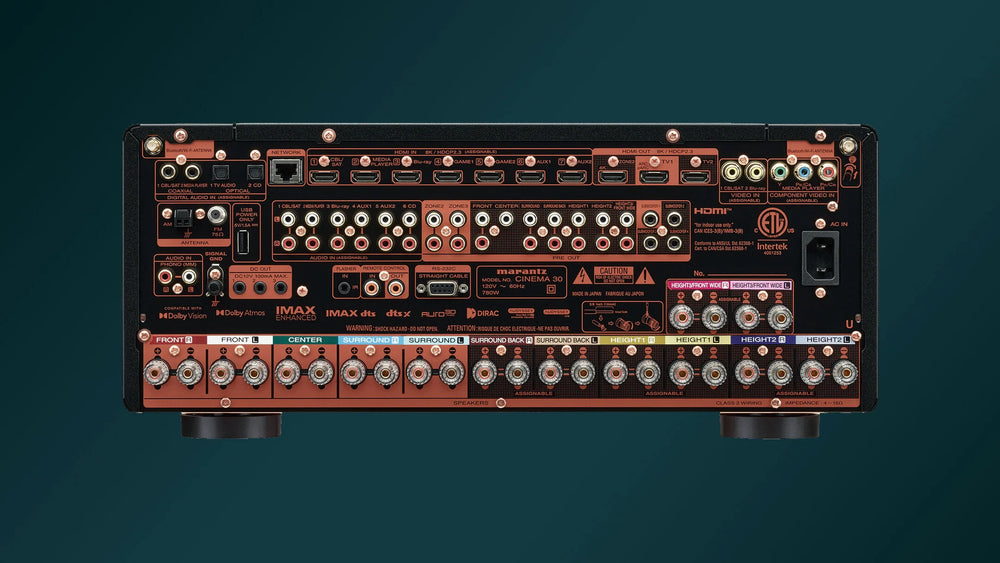

Inputs/Outputs

Video

Composite In / Out2 / 0 Component In / Out1 / 0 HDMI In / Out7 / 3 Multi-Room Video Out: Video / HDMINo / Yes

Audio

Analogue In / Out7 / 0 Phono (MM) InYes Digital In: Optical / Coaxial2 / 2 Multi-Room Out: Analogue / Digital2 / 0 Multichannel Pre OutYes (13.4) Subwoofer Out4 (independent) Speaker Terminal: Gold Plated Screw / Regular ScrewYes / No Number of Speaker Terminals13 Speaker A / BAssignable Bi-Amp DriveAssignable Multi-Room Speaker TerminalAssignable Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes USB AudioYes USB Power supply on rear panelYes

Specifications

Number of Poweramps11 8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive140 W 6 ohm, 1 kHz, 0.7% 2ch Drive175 W 6 ohm, 1 kHz, 10% 1ch Drive250 W 70% GuaranteeYes

Others

Auto Speaker Setup by MicrophoneAudyssey MultEQ XT32, Dirac Live (upgrade) Front Display2 line FLD + port hole OLED Graphic User Interface – GUIModern HD GUI GUI Languages9 Setup AssistantYes Smart SelectYes Firmware Update by Network / USBYes / Yes Variable Crossover / Optimized Bass Redirection / Bass SyncYes / Yes / Yes ECO Mode / Auto Power Off / Sleep TimerYes / Yes / Yes

General

Metal Front PanelYes System Remote ControlRC051SR Pre-Programmed / Learnable / LCD DisplayYes / Yes / Yes

Consumption

Power780 W Power, No Sound (ECO on / off)65 W / 110 W Standby0.2 W CEC Standby0.5 W Network StandbyLess than 2.0 W Network Control, ONLess than 2.0 W

Maximum Dimensions

Antenna, Horizontal(W x D x H) in cm: 442 x 457 x 189 Antenna, Vertical(W x D x H) in cm: 442 x 457 x 257 w/o Antenna(W x D x H) in cm: 442 x 447 x 189 Weight in kg 19.4
