- 300 Watt Quad Balanced Monoblock
- Vacuum tube powered
From the demands of massed chorale to full-on rock and roll, the MC2301 delivers the most extraordinarily lifelike and dynamic performance ever heard from a McIntosh tube amplifier. With an output of 300 Watts, it provides enough high power to drive even the most demanding loudspeaker. And thanks to our patented Unity Coupled Circuit output transformer, this full 300 Watts is available to 2, 4 or 8 Ohm speakers.
The MC2301 is the first McIntosh vacuum tube amplifier to use our Quad Balanced design. This design cancels virtually all noise and distortion in the audio signal. As a result, even when amplified to high levels the signal is effectively free of any distortion. Our fuse-less short-circuit protection circuit Sentry Monitor™ disengages the output stage before current exceeds safe operating levels and then resets automatically. Inputs for balanced and unbalanced cables are available to provide flexibility in connecting the rest of your audio system.

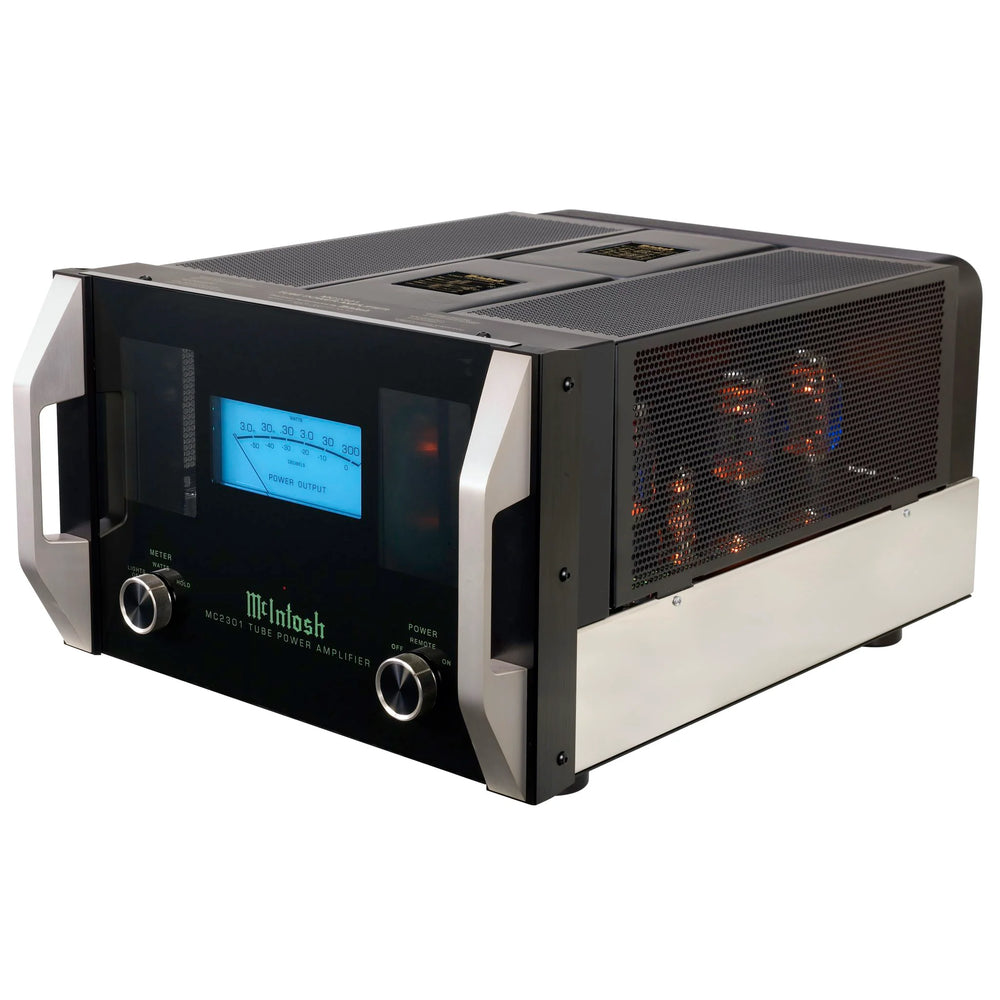

The attractive blue meter is flanked by two rows of output vacuum tubes that bring even more visual appeal to the front panel to go along with the knobs and brushed aluminium handles that all effortlessly blend with the polished stainless steel chassis. The MC2301 is well suited for stereo music systems. Contact your local dealer to learn more.
Specifications
ELECTRONIC SPECIFICATIONS
-
- Power Output per Channel
- 300W @ 2, 4 or 8 Ohms
-
- Number of Channels
- 1
-
- Total Harmonic Distortion
- 0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
(≤ 0.25% harmonic distortion at 1kHz)
-
- S/N below rated output
- 117dB
-
- Dynamic Headroom
- 1.2dB
-
- Damping Factor
- >15 Wideband
-
- Rated Power Band
- 20Hz to 20kHz
-
- Frequency Response
- +0, -0.5dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz
CONTROL
-
- Remote Power Control
- Yes
-
- Multi-Channel DB25 Cable
- N/A
GENERAL SPECIFICATIONS
-
- Circuit Configuration
- Quad Balanced, Unity Coupled
-
- Circuit Design
- Vacuum Tube
-
- Mono Bridge
- No
-
- Mono Parallel
- No
-
- Output Type
- Unity Coupled Output Transformer
-
- Meters
- Yes
-
- Meter Light Switch
- Yes
-

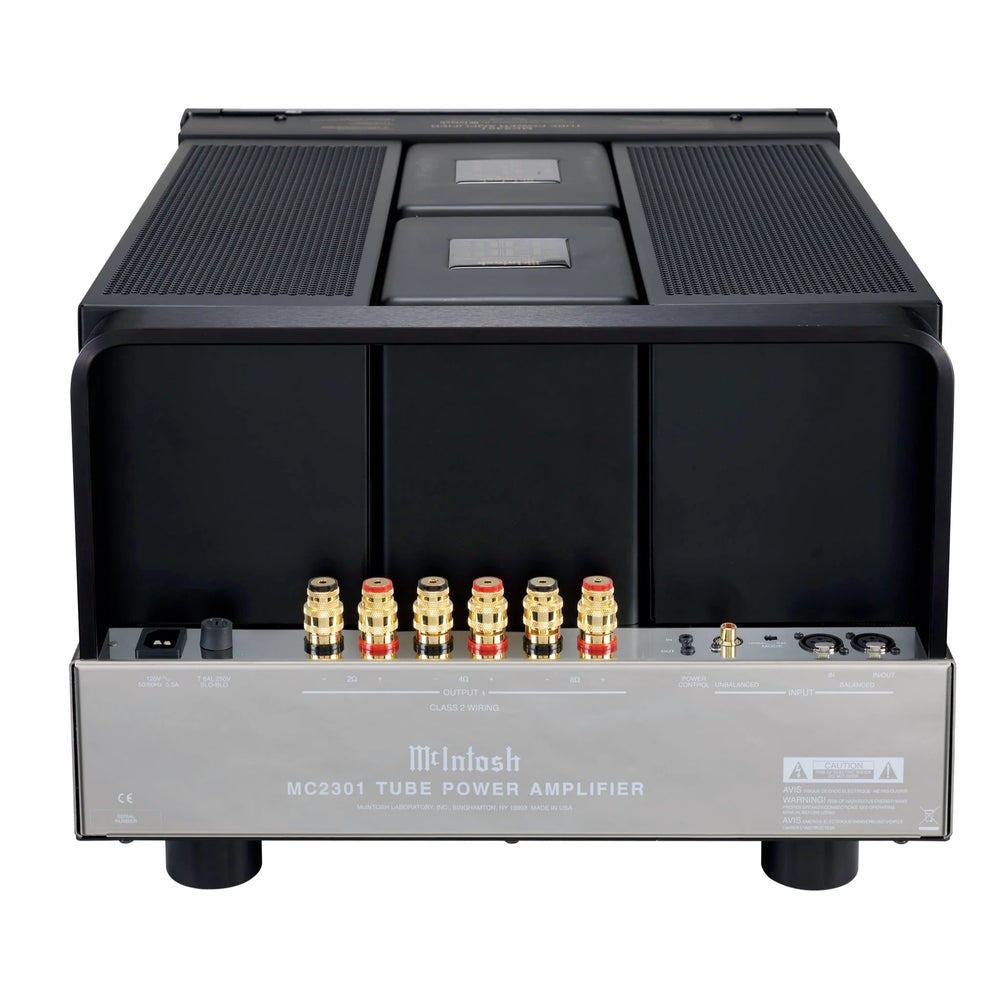

- Balanced Input
- Yes
-
- Front Panel
- 1/2" Glass with handles
-
- Illumination
- LED Fiber Optic
-
- Chassis Style
- Open Stainless Steel
CONNECTIVITY
-
- Speaker Binding Post Type
- Yes, 200 amp, 3-way
WEIGHTS & DIMENSIONS
-
- Dimensions (W x H x D)
- 17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 23" (58.42cm) (including front panel and cables)
-
- Weight
- 116 lbs (52.6 kg)
-
- Shipping Weight
- 141 lbs (63.9 kg)
