McIntosh

McIntosh MC257 7-channel Theatre Power Amplifier

$21,995.00
  • McIntosh MC257 7-channel Theatre Power Amplifier
  • McIntosh MC257 7-channel Theatre Power Amplifier
  • McIntosh MC257 7-channel Theatre Power Amplifier

Free shipping Australia-wide for orders over $500


Putting together a custom system? Click 'Add to quote' below, add any other products you’re interested in, and get a customised quote.

Please note due to McIntosh's global policy this can not be "added to cart" Please call us on 07 3552 7000 to discuss pricing and availability.

MC257

7-Channel Solid State Amplifier

  • 250 Watts x 3 Channels; 200 Watts x 7 Channels
  • TripleView™ Power Output Meter
  • 94% increase in Dynamic Headroom
  • Dynamic Power Manager®; Power Guard®
  • Designed for home theatres

Bring your home theatre dreams to life with the MC257 7-Channel Power Amplifier. Experience the latest blockbusters along with your favourite movies like never before in your home theatre with the sound quality and power only McIntosh can deliver.

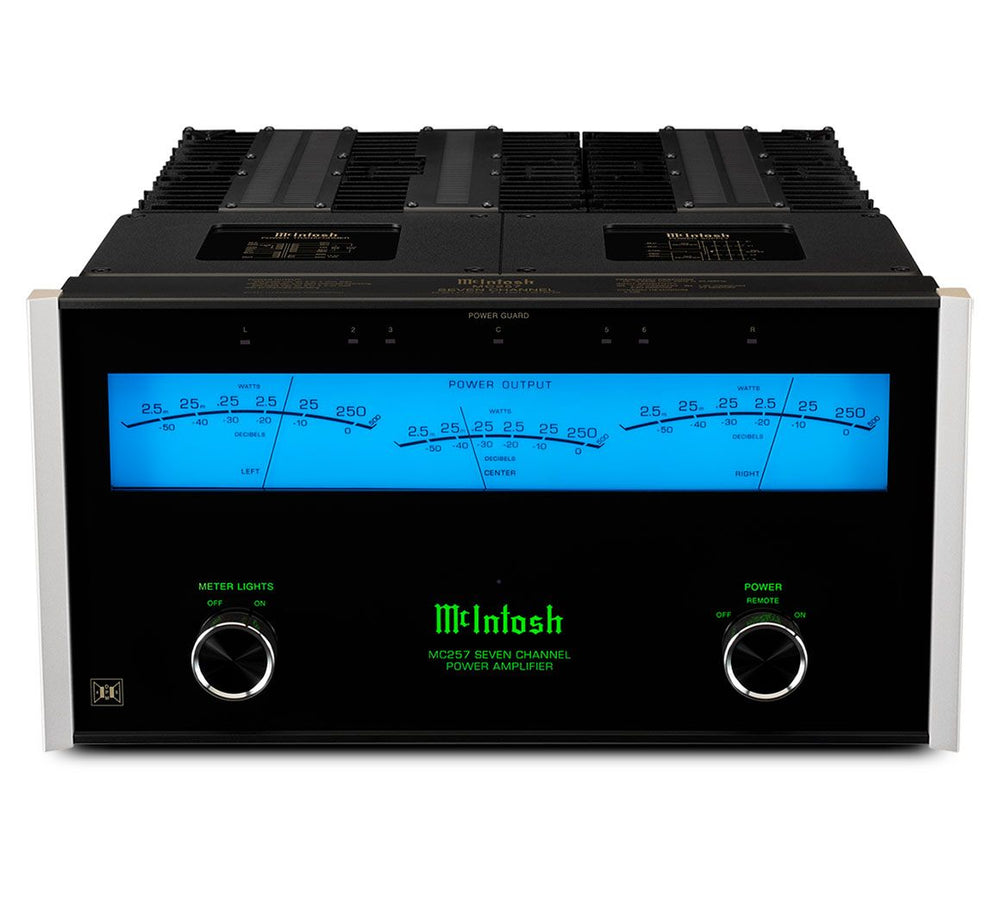

The MC257 is highlighted by our new eye-catching TripleView Power Output Meter that independently indicates the real time power reading of the amplifier’s three front channels. The easy-to-read, 15” (38 cm) wide TripleView meter design is a streamlined approach to the three individual meters found on our previous generation 7-channel home theatre amplifier. Instead of three separate meter windows each housing a single meter, the TripleView features three of our traditional mechanical meters in a single meter enclosure. While a totally new design, each of the three pointers in the TripleView meter have the same inviting motion that McIntosh meters are known for and perform at the same high level as any of our meters. The captivating look and glow of the TripleView meter is sure to be a conversation starter, but its trademarked blue lighting can be turned off so as not to compete with your TV or movie screen.



McIntosh MC257 Amplifier

In addition to the new TripleView meter, the MC257 features many other upgrades. When using just the front left, centre and right channels, power output has been increased by 25% from 200 Watts per channel to 250 Watts per channel. When using all 7 channels, each will receive a healthy 200 Watts per channel. Regardless of how many channels are used, the full 200 or 250 Watts is delivered to either 4 or 8 Ohm speakers via our Dynamic Power Manager® (DPM) technology. Filter capacity has been increased by 20% which has produced an amazing 94% increase in dynamic headroom from 1.7dB to 3.3dB as well as improving low frequency performance – both key features in a home theatre amplifier, especially when listening to an energetic soundtrack.

The MC257 comes with five of our McIntosh Monogrammed Heatsinks which are connected to advanced high current output transistors to efficiently and silently cool the amplifier; as a result, noisy cooling fans that can interfere with the movie soundtrack are not needed. A quiet, specially wound toroidal isolation power transformer also helps keep noise to a minimum. Speaker terminals have been updated to our standard gold-plated binding posts that prevent corrosion and ensure a quality signal is sent to your home theatre speakers. Our power management system that will turn the amplifier off after a set amount of time when no input signal has been detected has also been added. Finally, the front panel is now lit by direct LED backlighting for improved colour accuracy and durability.

McIntosh MC257 Amplifier

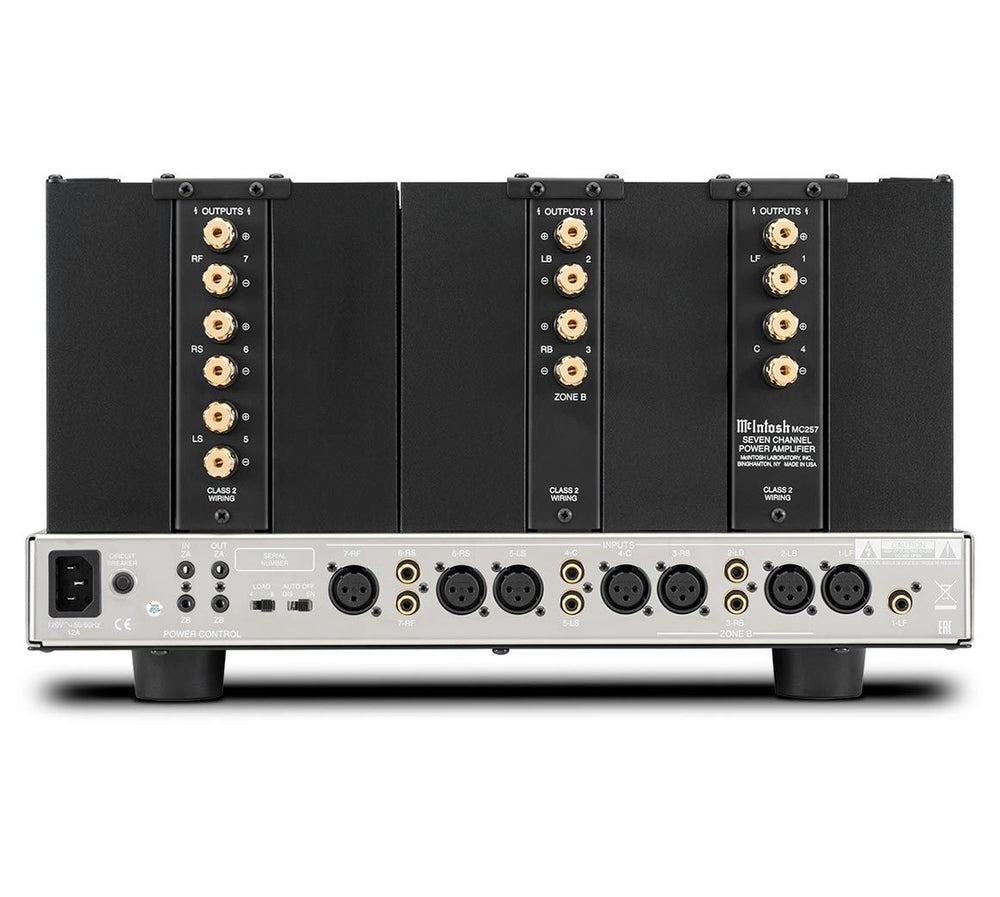

Besides all these upgrades, the MC257 comes with steadfast McIntosh technologies like Power Guard® to prevent potential speaker damage caused by clipping and over-driving of the amplifier. Our Sentry Monitor technology protects against short-circuits by disengaging the output stage should the current ever exceed safe operating levels (it then resets automatically when operating conditions return to normal). Both balanced and unbalanced inputs are included to connect the MC257 home theatre amplifier to your home theatre processor.

McIntosh MC257 Amplifier

The MC257 can be utilized in many ways: it can power a 7-channel home theatre by itself; it can be paired with either our MI128 or MI254 digital amplifiers in home theatres that have more than 7-channels; or it can be used in 5-channel home theatres with 2 of its channels available to power a second audio zone in your home.

The MC257 sits on a polished stainless steel chassis and bears the classic McIntosh design of a black glass front panel with the TripleView meter, illuminated logo, control knobs, and aluminium end caps. Contact your local dealer to learn more.

Specifications

  • ELECTRONIC SPECIFICATIONS

    • Power Output per Channel
      3 Front Channels only: 250W @ 4 or 8 Ohms
      All 7 Channels: 200W @ 4 or 8 Ohms
    • Number of Channels
      7
      (can also be used as a 2-zone amplifier with 5 channels in zone A and 2 channels in zone B)
    • Total Harmonic Distortion
      0.005%
    • S/N below rated output
      108dB
    • Dynamic Headroom
      3.3dB
    • Damping Factor
      >70 @ 4 Ohms
      >140 @ 8 Ohms
    • Rated Power Band
      20Hz to 20kHz
    • Frequency Response
      +0, -0.25dB from 20Hz to 20,000Hz
      +0, -3dB from 10Hz to 100,000Hz

    CONTROL

    • Remote Power Control
      Yes, 7 or 5 + 2 Channel
    • Multi-Channel DB25 Cable
      No

    GENERAL SPECIFICATIONS

    • Circuit Configuration
      Push-Pull Complementary
    • Circuit Design
      Solid State
    • Mono Bridge
      No
    • Mono Parallel
      No
    • Output Type
      Direct Coupled with Dynamic Power Manager®
    • Meters
      Yes
    • Meter Light Switch
      Yes
    • Balanced Input
      7
    • Front Panel
      Glass
    • Illumination
      Direct LED
    • Chassis Style
      Polished stainless steel & black painted steel

    CONNECTIVITY

    • Speaker Binding Post Type
      Standard

    WEIGHTS & DIMENSIONS

    • Dimensions (W x H x D)
      17-1/2" (44.5cm) x 9-7/16" (23.9cm) (including feet) x 21" (53.3cm) (including front panel and cables)
    • Weight
      95 lbs (43 kg)
    • Shipping Weight
      128 lbs (58 kg)
