Please note due to McIntosh's global policy this can not be "added to cart" Please call us on 07 3552 7000 to discuss pricing and availability.

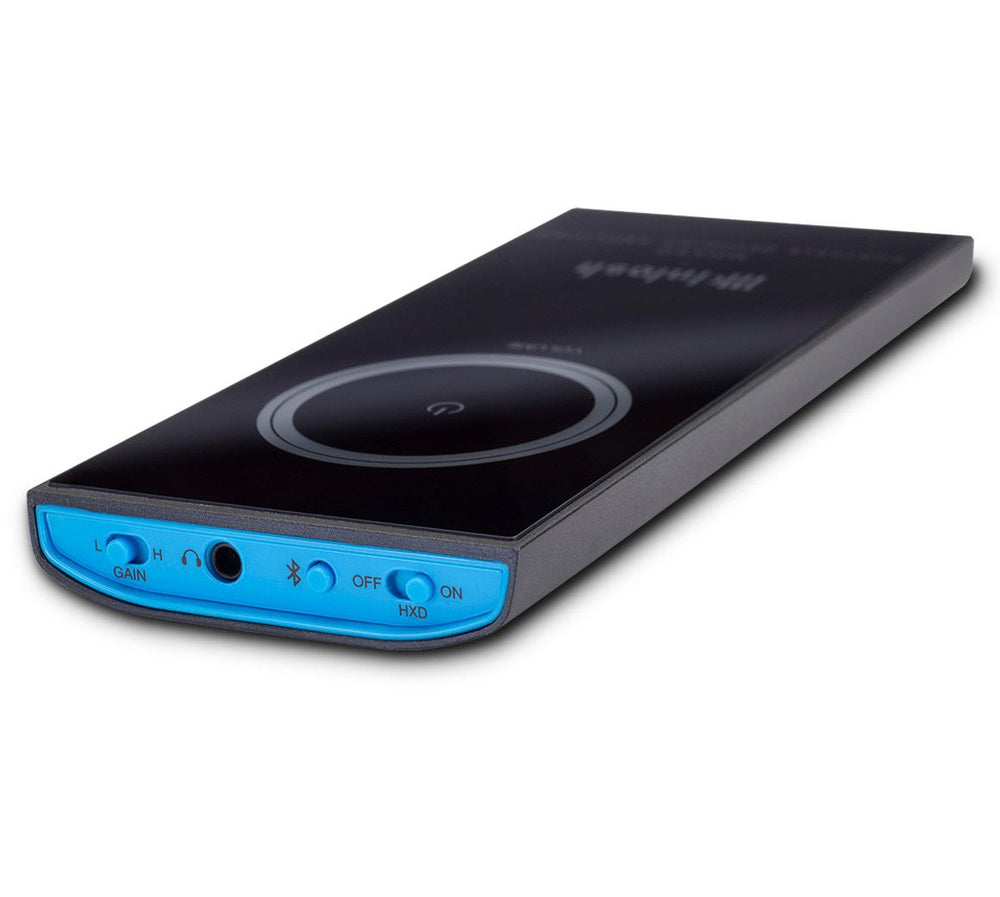

Portable headphone amp for your phone, tablet or PC Bluetooth with aptX; McIntosh XHD output Decodes up to 32bit/192kHz and DSD128 Two gain settings for diverse headphone support
HEADPHONE OUTPUT SPECIFICATIONS
-
- Headphone Power Output
- 200mW
-
- Headphone Output Impedance
- 8-600 Ohms
ELECTRONIC SPECIFICATIONS
-
- Rated Power Band
- 20Hz to 20kHz
-
- Total Harmonic Distortion
- 0.005%
-
- Frequency Response
- +0, -0.5dB from 20Hz to 50kHz
-
- Signal To Noise Ratio
- 105dB
-
- Preamplifier Output
- 1.8V
CONNECTIVITY
-
- Headphone Output
- 3.5mm with Headphone Crossfeed Director (HXD®)
-
- Digital USB Input
- 2 (1 Type A, 1 micro B)
-
- Wireless Input
- Bluetooth 4.2 A2DP with support for AAC and aptX
-
- Source Support
- Apple iOS devices; Android devices (must be compatible with USB On-The-Go technology to use a wired connection); MacOS & Windows OS computers
DIGITAL AUDIO SPECIFICATIONS
-
- Digital USB Input Sample Rate
- PCM 16-bit, 24-bit, 32-bit to 192kHz, DSD64, DSD128, DXD352.8, DXD384
GENERAL SPECIFICATIONS
-
- Output Meters
- No
-
- Vacuum Tube or Solid State
- Solid State
-
- Power Requirement
- 5V DC, 0.7A
-
- Output Type
- N/A
-
- Battery Playback Life
- Up to 6 hours with Bluetooth connection; playback can last even longer when using the wired connections
-
- Included In The Box
- 1 leather carrying case
1 Lightning to USB-A cable
1 USB micro-B to USB-A cable
1 USB micro-B to USB micro-B cable
1 USB micro-B to USB-C OTG cable
1 wall mount charger with USA plug and adapter for Europe and Japan
All cables are 8"/200mm long
WEIGHTS & DIMENSIONS
-
- Unit Dimensions (W x H x D)
- 2.7" (7cm) x 6.1" (15.5cm) x 0.6" (1.4cm)
-
- Unit Weight
- 0.5 lbs (0.2 kg)
-
- Shipping Weight
- 1 lbs (0.5 kg)
