McIntosh

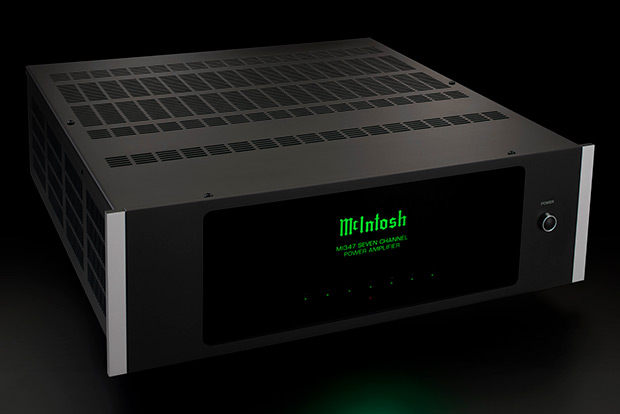

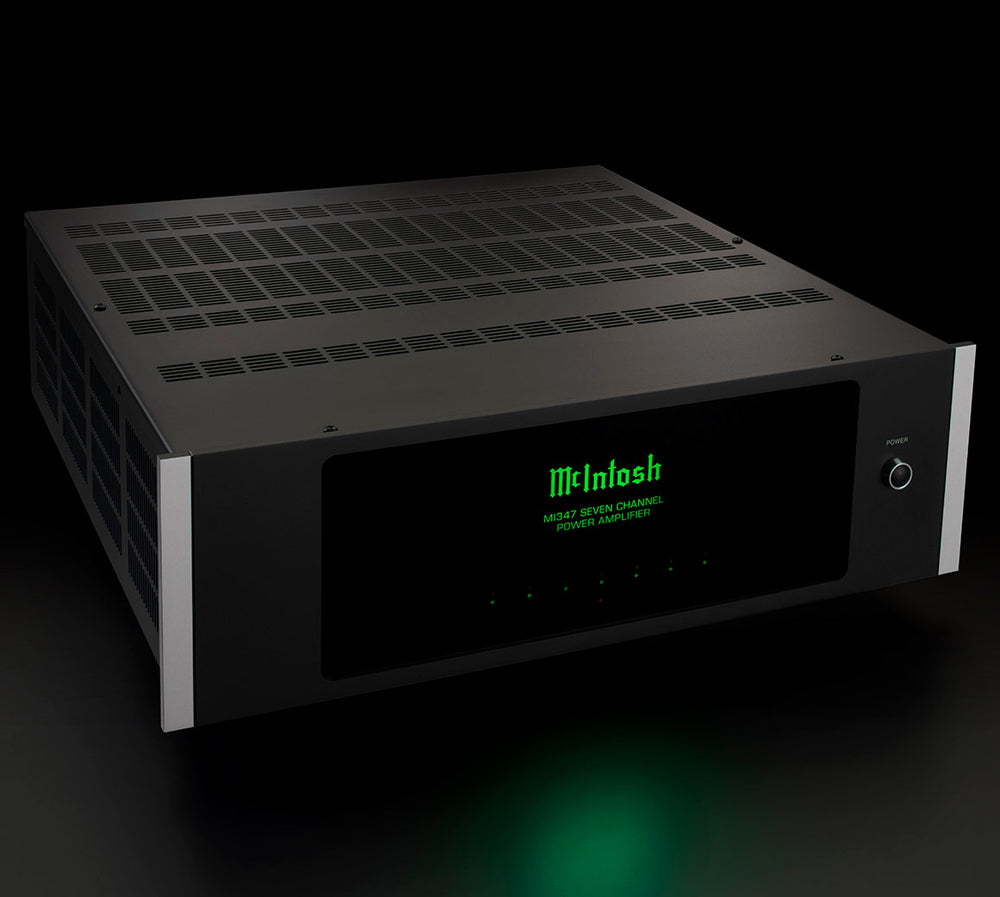

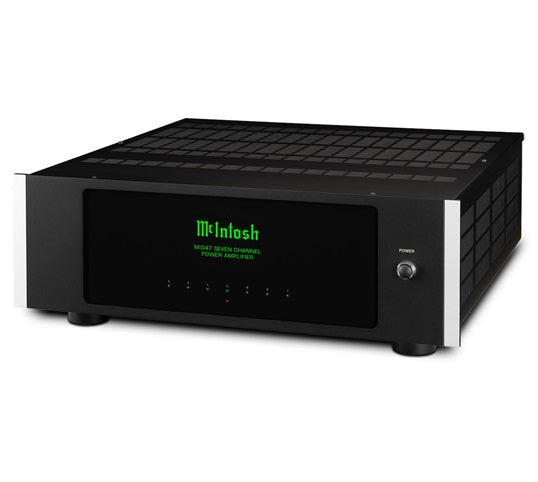

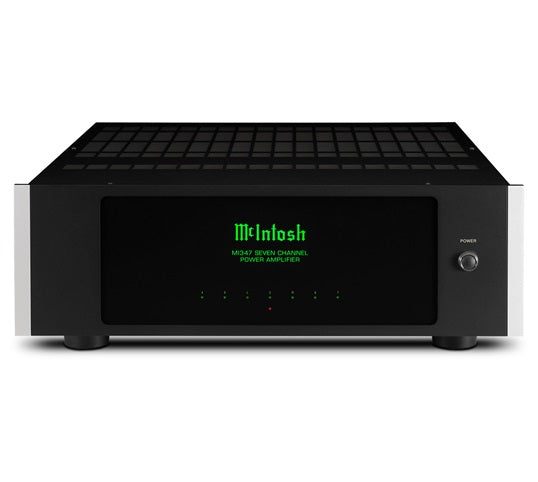

McIntosh MI347 7-Channel Digital Amplifier

$10,495.00
  • McIntosh MI347 7-Channel Digital Amplifier
  • McIntosh MI347 7-Channel Digital Amplifier
  • McIntosh MI347 7-Channel Digital Amplifier
  • McIntosh MI347 7-Channel Digital Amplifier
  • McIntosh MI347 7-Channel Digital Amplifier
  • McIntosh MI347 7-Channel Digital Amplifier

Free shipping Australia-wide for orders over $500


Putting together a custom system? Click 'Add to quote' below, add any other products you’re interested in, and get a customised quote.

Please note due to McIntosh's global policy this can not be "added to cart" Please call us on 07 3552 7000 to discuss pricing and availability.

MI347

7-Channel Digital Amplifier

  • Designed for home theatres
  • 3 Front Channels: 250 Watts into 8 Ohms or 300 Watts into 4 Ohms
  • 4 Surround Channels: 125 Watts into 8 Ohms or 200 Watts into 4 Ohms
  • 3U rack mountable
  • Power Guard®; Sentry Monitor

Edge-Of-Your-Seat Audio Experience

The MI347 7-Channel Digital Amplifier is a dedicated home theatre amplifier that delivers an immersive sonic experience that provides a heart-stopping, edge-of-your-seat audio experience in the comfort of your home theatre. It uses highly sophisticated closed loop digital switching amplifiers that are paired with extremely robust power supplies that produce audio performance levels rarely heard in home theatres.

McIntosh MI347 Amplifier

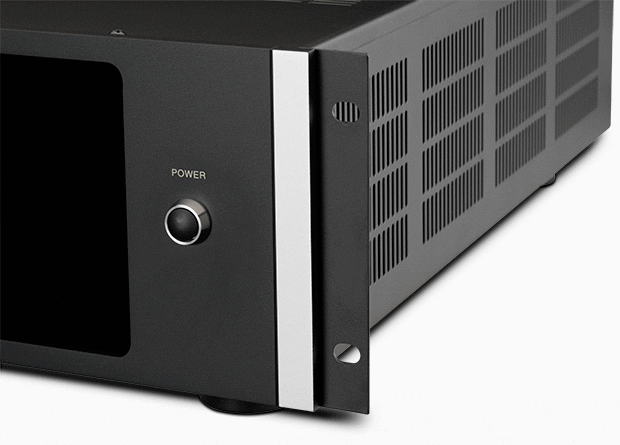

Meant to be heard more than seen – such as being installed in an out-of-sight A/V equipment rack, the MI347 has a simplified and understated exterior. But rest assured that the internal circuitry and components have received the full attention of the McIntosh engineers to make you feel like you are part of your favourite movies. With its rack-friendly 3U height, it can easily be installed in your A/V rack via the included rack mounting brackets (the mounting brackets are removable for non-rack installations). But the MI347 is not limited to just rack installations, as it can also be placed out in the open for all to see and enjoy.

McIntosh MI347 Amplifier

In a home theatre, the most important audio channels or speakers are the front left, front right, and centre channel speaker. These are where a majority of the dialogue and the loudest and most prominent special effects resonate from. As such, the MI347 will deliver 250 Watts at 8 Ohms or 300 Watts at 4 Ohms to each of these three speakers. The MI347's other four channels are meant to drive the still important but less power-hungry surround sound speakers or ceiling speakers. To each of these four channels, the MI347 will deliver a healthy 125 Watts at 8 Ohms or 200 Watts at 4 Ohms.

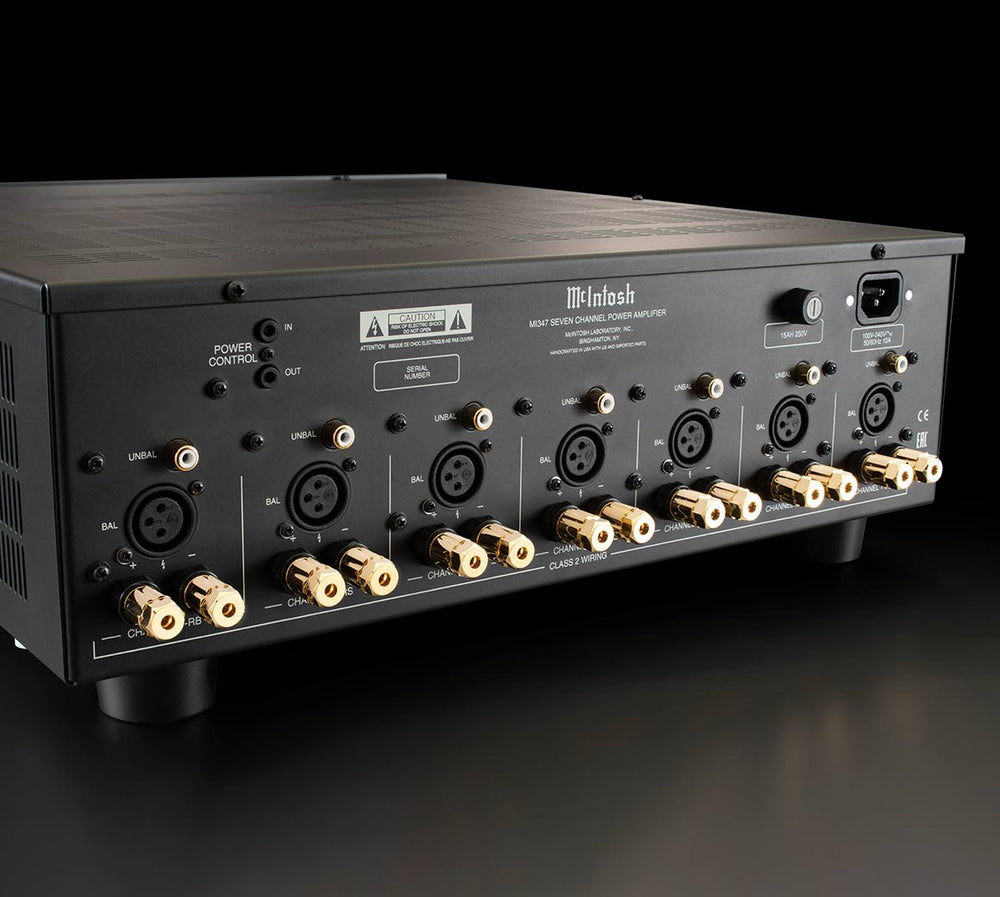

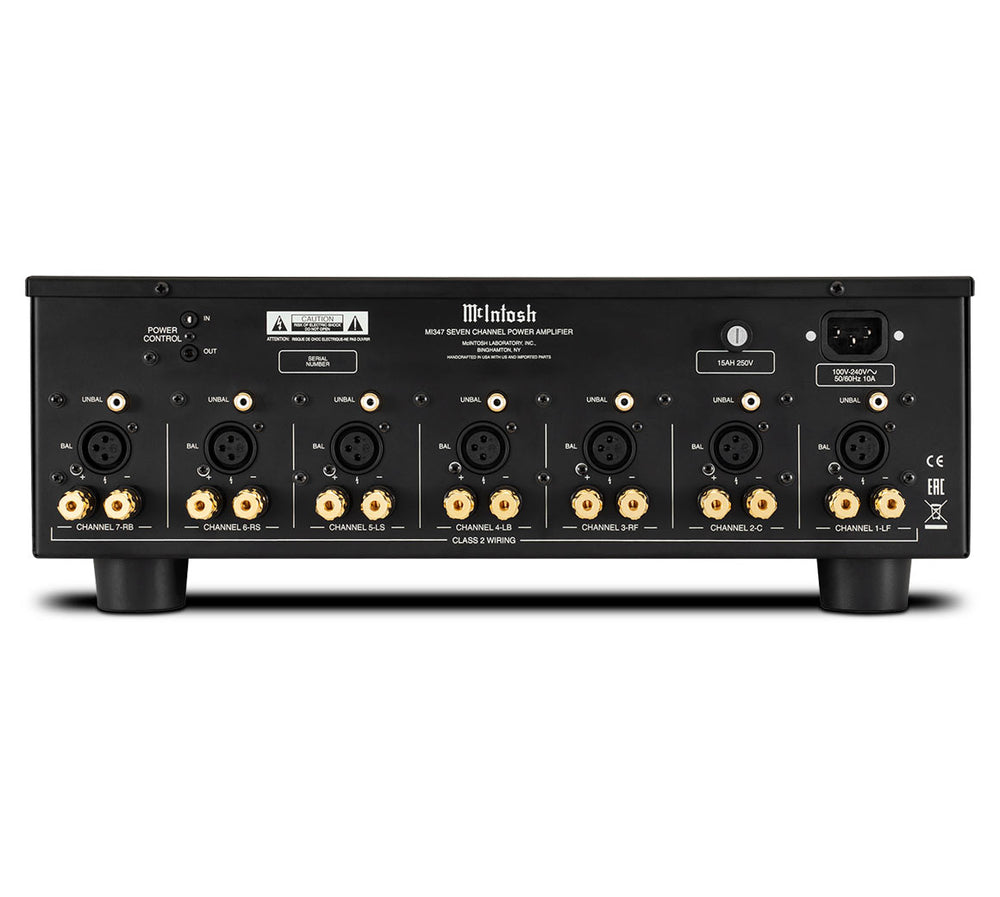

A highly efficient Class D amplifier, the MI347 does not require noisy cooling fans to maintain nominal operating temperature; it also features an abundance of cooling vents on the top and sides to further assist with heat dissipation. On the front panel, multi-colour LED indicators display the status of each channel. On the back, both a balanced and unbalanced input is included for each channel along with our standard 5-way speaker binding posts.

The MI347 can be used with any McIntosh home theatre A/V Processor like our MX123, MX170 or rack mountable MX100. If you've got more than 7 audio channels in your home theatre, such as with Dolby® Atmos or DTS:X, you can add our MI254 4-Channel Digital Amplifier or MI128 8-Channel Digital Amplifier (both rack mountable) to deliver McIntosh power to all your home theatre speakers.

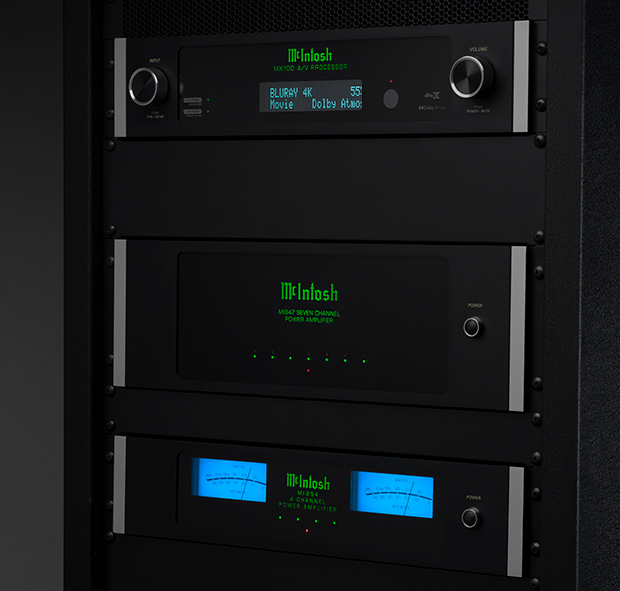

McIntosh MX100 A/V Processor, MI347 Amplifier, MI254 Amplifier

Other features included with the MI347:

  • Power Guard® signal overload technology that prevents overdriving and damaging your speakers
  • Sentry Monitor short-circuit protection circuit that disengages the output stage should current ever approach unsafe operating levels and then resets automatically when operating conditions return to normal
  • Power Control to automatically turn other connected McIntosh components on and off
  • Eco-friendly on/off signal sensing that turns the unit off if no input signal has been detected for a set amount of time and – perhaps more conveniently – automatically turns the MI347 on when it senses a signal from your home theatre processor

The MI347 includes many McIntosh design cues including a black glass front panel, an illuminated McIntosh logo, and a familiar form factor highlighted by silver trim. Contact your local dealer to learn more.

Specifications

  • ELECTRONIC SPECIFICATIONS

    • Power Output per Channel
      3 Front Channels: 250 Watts into 8 Ohms or 300 Watts into 4 Ohms
      Surround Channels: 125 Watts into 8 Ohms or 200 Watts into 4 Ohms
    • Number of Channels
      7
    • Total Harmonic Distortion
      0.025%
    • S/N below rated output
      100dB
    • Dynamic Headroom
      8 Ohms: 2.5dB
      4 Ohms: 3.5dB
    • Damping Factor
      8 Ohms: >85
      4 Ohms: >45
    • Rated Power Band
      20Hz to 20kHz
    • Frequency Response
      +0, -0.9dB from 20Hz to 20,000Hz

    CONTROL

    • Remote Power Control
      Yes
    • Multi-Channel DB25 Cable
      N/A

    CONNECTIVITY

    • Speaker Binding Post Type
      Standard

    GENERAL SPECIFICATIONS

    • Circuit Configuration
      Closed loop digital switching
    • Circuit Design
      Digital
    • Mono Bridge
      N/A
    • Mono Parallel
      N/A
    • Output Type
      Direct Coupled
    • Meters
      No
    • Meter Light Switch
      No
    • Balanced Input
      7
    • Front Panel
      Glass with removable rack mounting ears
    • Illumination
      Direct LED
    • Chassis Style
      Black painted steel

    WEIGHTS & DIMENSIONS

    • Dimensions (W x H x D)
      17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 6-1/16" (15.4cm) (including feet) x 21" (53.3cm) (including front panel and cables)
    • Weight
      32.5 lbs (14.8 kg)
    • Shipping Weight
      47 lbs (24.4 kg)
