Please note due to McIntosh's global policy this can not be "added to cart" Please call us on 07 3552 7000 to discuss pricing and availability.

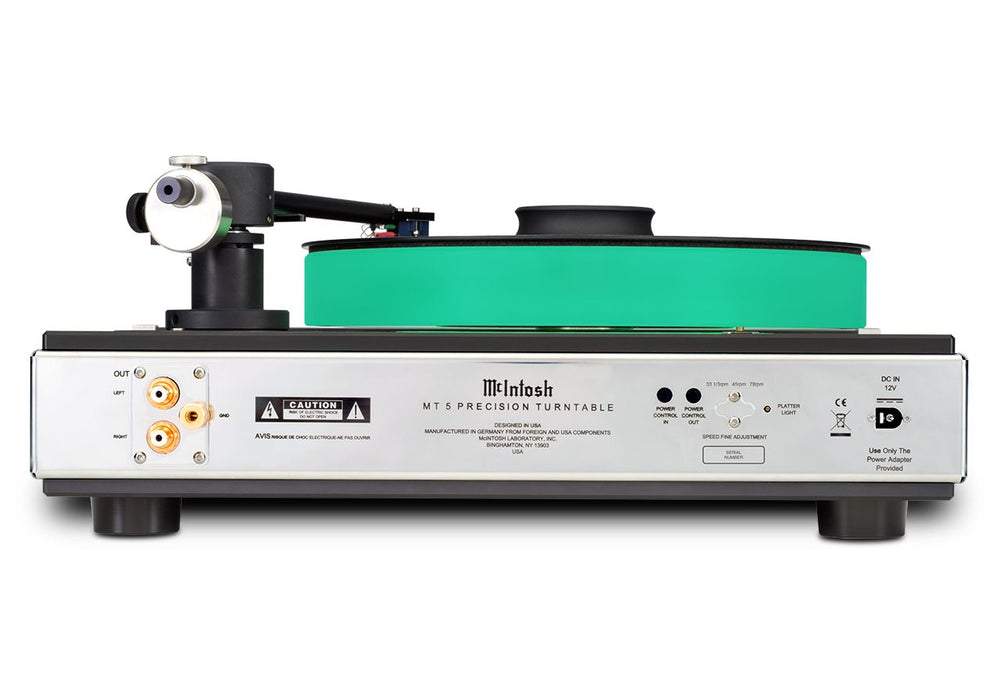

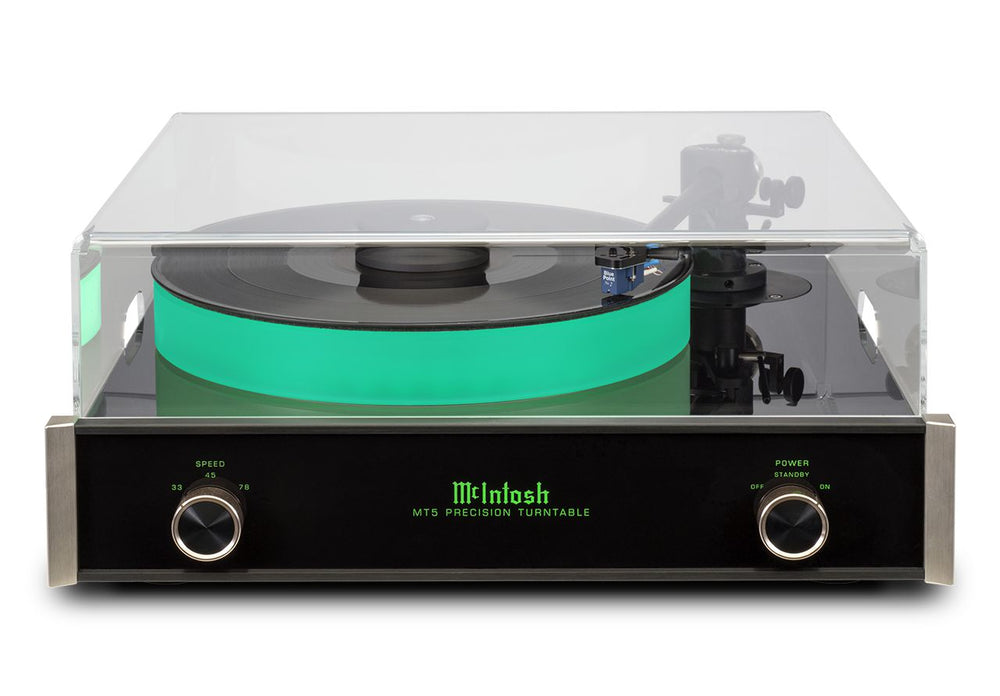

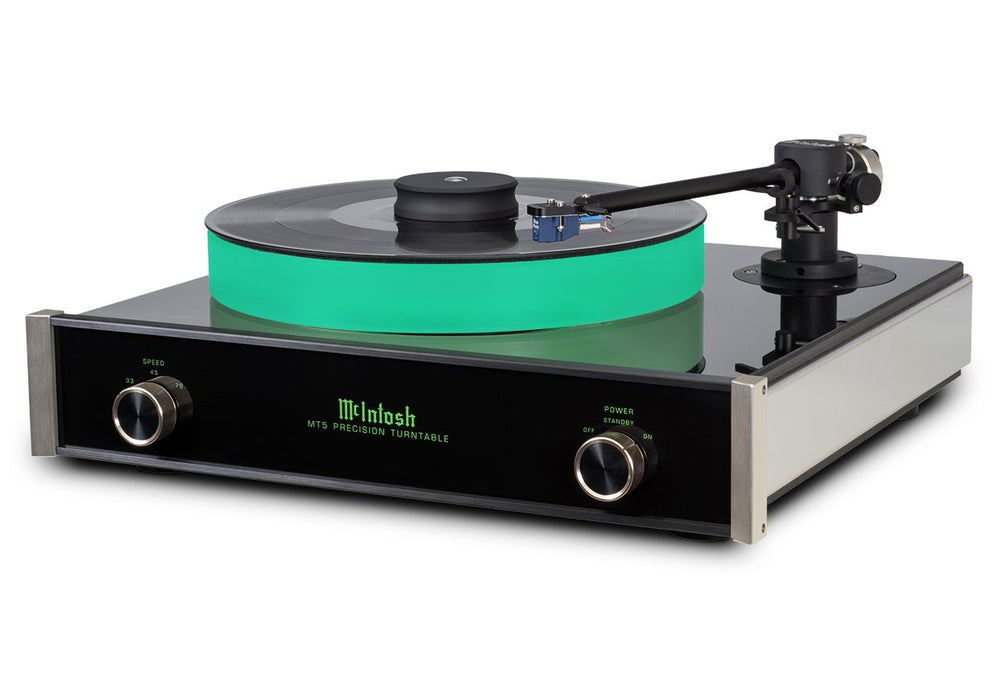

The McIntosh MT5 Precision Turntable is a complete turntable package that is more than the sum of its parts. Engineered to exacting McIntosh standards, each piece contributes to deliver a superb performance. The illuminated, magnetically suspended platter produces an inviting glow that's sure to be a conversation starter among friends and guests alike.
The MT5 comes equipped with a high performance platter and motor drive assembly, precision tone arm and a Sumiko Amethyst cartridge, a next-gen high output moving magnet phono pickup. Topped off with a nude line-contact diamond, the stylus couldn't be more nimble. Reaching every nook and cranny of your record grooves and handling that information with the utmost grace, Amethyst competes favorably with similarly priced moving coil designs. It is shockingly quiet and thus as transparent as can be, skillfully tracing even the most complicated passages your record collection has to offer. Expect effortless dynamic handling, depth and clarity over a black background, impeccably realistic transience, and images that leap from your soundstage but remain naturally positioned.
The MT5 is factory adjusted for perfect playback. Tracking force, anti-skate force, cartridge overhang and arm height are all preset for maximum performance. Advanced magnetic platter bearings and a precise belt drive motor spins records with absolute stability and quiet, assuring a pleasurable vinyl listening experience. The custom tone arm and cartridge track records with minimum friction using magnetic antiskate and horizontal, tone-arm bearings. While the construction of the MT5 is meticulous, the setup is simple. In a few easy steps, you’ll be ready to enjoy your favorite vinyl recordings.
CARTRIDGE SPECIFICATIONS
-
- Cartridge Type
- Moving Magnet
-
- Output Level
- 2.5 mV at 5 cm/s
-
- Load Impedance
- 47K Ohms recommended (Preamp MM Input)
-
- Frequency Response
- 12Hz to 35kHz
-
- Channel Separation
- 30dB at 1kHz
-
- Compliance
- 12 x 10-6 cm/dyne
-
- Recommended Tracking Force
- 2.0 g
-
- Channel Difference
- Less than 0.5dB at 1kHz
-
- Total Mass
- 6.5 g
-
- Stylus
- Extended Line Contact
-
- Cantilever Material
- Aluminum
TONEARM SPECIFICATIONS
-
- Bearing
- Magnetic Sapphire and Ceramic
-
- Arm Tube
- Dural-Aluminum
-
- Counterweight
- Eccentric
-
- Adjustments
- Vertical Tracking Angle, Antiskate, Azimuth
TURNTABLE SPECIFICATIONS
-
- Playback Speeds
- 33-1/3, 45 and 78 rpm
-
- Motor Type
- DC Motor with Stainless Steel Brushes
-
- Speed Control
- Servo System
-
- Platter
- Silicon Acrylic
-
- Platter Bearing
- Magnetic Suspended Ceramic
-
- Signal To Noise Ratio
- 36dB - 41dB
-
- Wow & Flutter
- 0.15% - 0.20%
CONNECTIVITY
-
- Stereo Outputs Unbalanced
- 1
CONTROL
-
- Power Control Input
- 1
-
- Power Control Output
- 1
-
- Platter Light
- Yes
-
- Speed Control Fine Adjustment
- Yes
GENERAL SPECIFICATIONS
WEIGHTS & DIMENSIONS
-
- Unit Dimensions (W x H x D)
- 17-1/2" (44.45cm) x 7" (17.8cm) (7-1/2" (19.0cm) with dust cover) x 17" (43.18cm)
Note: Tone Arm Height will vary depending on the type of Cartridge installed.
-
- Unit Weight
- 31.5 lbs (14.3 kg)
-
- Shipping Weight
- 38 lbs (17.2 kg)
